Our pRODUCTS

Air Quality

OUR PRODUCTS

Air Quality

In the realm of sensors and switches, Neo Wave stands out for its comprehensive offerings in air quality monitoring. Our advanced sensors are meticulously designed to provide real-time data on various air pollutants and particulate matter, ensuring occupants breathe cleaner and healthier air indoors. Paired with our intelligent switches, these systems not only detect air quality issues but also enable automated responses to maintain optimal environmental conditions. By prioritizing air quality management, Neo Wave enhances comfort, productivity, and well-being in residential, commercial, and industrial spaces.

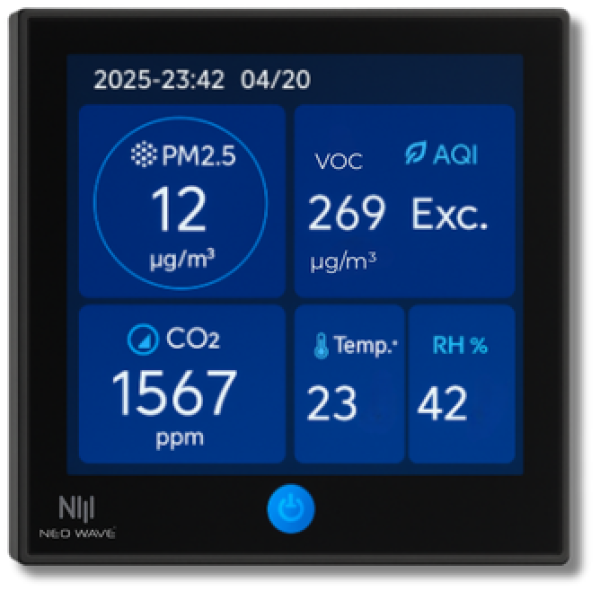

AQS820

Multi-in-one Air Quality Sensor-AQS820

NeoWave AQS820 is a compact air quality monitoring device integrating one to 11 sensor types, offering various sensor combinations to suit diverse application needs. With dedicated probes for each parameter, it ensures accurate measurements and includes external temperature and humidity sensors. A real-time display screen provides continuous environmental updates. Its compact design ensures minimal space usage without compromising functionality, performance stability, or cost efficiency. The AQS820 is ideal for environmental quality monitoring and IoT-based gas detection applications.
Datasheet

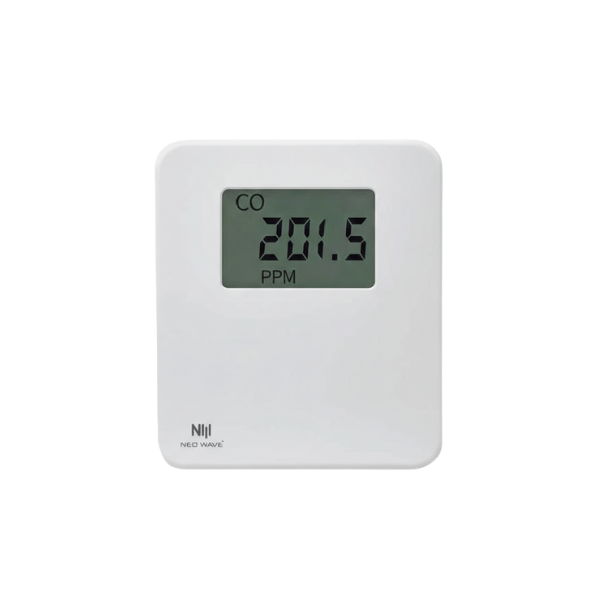

TxCOI8

Indoor Carbon Monoxide Tranducer TxCOI8

The TxCOI8 indoor carbon monoxide transmitter features a high-performance electrochemical sensor that accurately measures carbon monoxide levels in the environment, offering quick response times, stable performance, and high accuracy. It supports a wide power supply range and includes protection against overvoltage and reverse polarity. The device provides current, voltage, or RS485 output signals and has a configurable relay action point along with independent control and alarm functions
Datasheet
Usere Manual
Untitled-1_0007_Vector Smart Object

All-In-One Air Quality Transducer – TxAQ84

TxAQ84 All-In-One Air Quality Transducer detects temperature, humidity, CO2, PM2.5, PM10, VOC, and formaldehyde—up to 7 parameters. It offers RS485 output with a built-in Modbus protocol for real-time, multi-point data detection. The indoor model can include a display screen and a three-color LED indicator to show air quality status. Both indoor and top suction types support RS485 communication configuration. With wide power supply options and protection features, it’s ideal for air quality monitoring in commercial complexes, offices, hotels, airports, and schools.
Datasheet
Screenshot_2024-03-24_102918-removebg-preview-qlo8hvjbupougksy4vuj3pxl2a8e7dw430u8vxgi9c

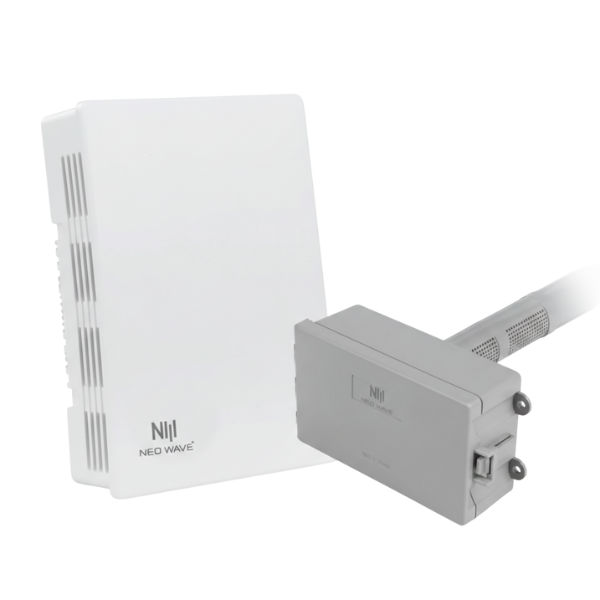

Carbon Dioxide (CO2) & Temperature (Wall and Duct) – TxCDT

The TxCDT series transducers for carbon dioxide (CO2) and temperature are engineered to monitor and regulate indoor air quality alongside temperature within a one unit.
Datasheet
2-2-qk4n9u57sotyvysfpyak8a67mk4o1x1vy50k2nvf5c

Wall-Mounted Carbon Monoxide (CO) TxCOW

The NEOWAVE TxCOW carbon monoxide transducer, designed for wall-mounting, employs an electro-chemical method to detect carbon monoxide in the air, ensuring selectivity and stability. It offers three output options: current, voltage, and RS485. With a wide voltage power supply and protection against reverse polarity, it’s ideal for monitoring carbon monoxide in indoor spaces, air conditioners, air purifiers, and underground parking.
Datasheet
3-1-qk4mzlohdmtkgtnnhj0t2v5iriks8kf3vha7y71qwg

Indoor Carbon Dioxide (CO2) TxCDI

The NEOWAVE TxCDI indoor carbon dioxide transmitter relies on the unique way different gases absorb infrared light in a specific range. It gauges gas concentration by measuring this light absorption. Unlike electro-chemical sensors, it’s durable and stable. TxCDI Equipped with an imported high-performance NDIR sensor, it swiftly and accurately measures CO2 levels with stable performance. TxCDI comes with a compact size and simple setup make it perfect for indoor CO2 measurement.
Datasheet
4-qk4me43b4zel1qvbyqmuksd5vehp9o40l4dlzgwr5c

Duct Carbon Dioxide (CO2) TxCDD

NEOWAVE TxCDD ducted carbon dioxide transmitter works by detecting how different gases absorb infrared light. It measures the concentration of carbon dioxide in the air by analyzing this absorption. Unlike electrochemical sensors, it lasts a long time and stays stable. It uses a high-performance NDIR sensor to measure CO2 levels accurately and quickly. It’s versatile, with a wide power range and high enclosure protection, making it suitable for tough conditions. It’s great for measuring CO2 levels in pipelines, offices, factories, labs, and more.
Datasheet
2-1-qk4m9fu75n09bjnq97wmogtnjfizzuk29zlp2xu834

Wall-Mounted Carbon Dioxide (CO2) TxCDW

The NEOWAVE TxCDW wall-mounted carbon dioxide transmitter works by using infrared light to measure the concentration of carbon dioxide gas in the air. It’s designed for indoor air quality testing, air conditioners, air purifiers, and even vegetable greenhouses. Unlike electrochemical sensors, it has a longer lifespan, stable performance, and can handle a wide range of power supplies, with protection against reverse connection.
Datasheet
